NeuwerkH40MF22150

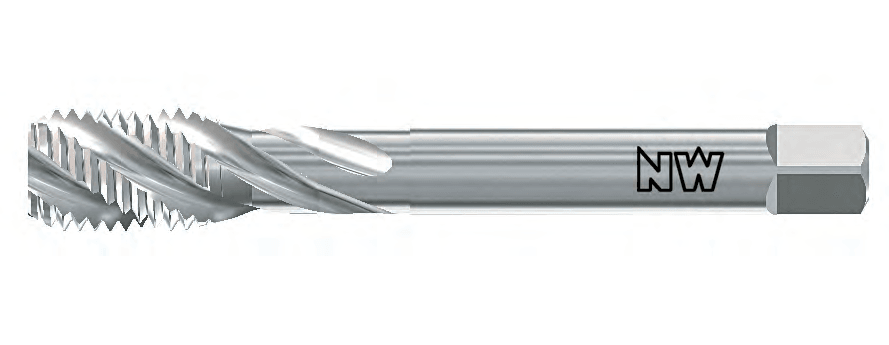

H40 - Makine Kılavuzları - MF22x1,5
Teknik Açıklama
Teknik Dokümanı AçVaryantlar
M2x0,4M2x0,4M2x0,4M3x0,5M3x0,5M3x0,5M3x0,5M4x0,7M4x0,7M4x0,7M4x0,7M5x0,8M5x0,8M5x0,8M5x0,8M6x1M6x1M6x1M6x1M8x1,25M8x1,25M8x1,25M8x1,25M10x1,5M10x1,5M10x1,5M10x1,5M8x1,25M8x1,25M8x1,25M8x1,25M10x1,5M10x1,5M10x1,5M10x1,5M12x1,75M12x1,75M12x1,75M12x1,75M14x2M14x2M14x2M14x2M16x2M16x2M16x2M16x2M18x2,5M18x2,5M18x2,5M18x2,5M20x2,5M20x2,5M20x2,5M20x2,5M22x2,5M22x2,5M22x2,5M22x2,5M24x3M24x3M24x3M24x3M27x3M27x3M27x3M27x3MF8x1MF8x1MF8x1MF8x1MF10x1,25MF10x1,25MF10x1,25MF10x1,25MF10x1MF10x1MF10x1MF10x1MF12x1MF12x1MF12x1MF12x1MF12x1,25MF12x1,25MF12x1,25MF12x1,25MF12x1,5MF12x1,5MF12x1,5MF12x1,5MF14x1,5MF14x1,5MF14x1,5MF14x1,5MF16x1,5MF16x1,5MF16x1,5MF16x1,5MF18x1,5MF18x1,5MF18x1,5MF18x1,5MF20x1,5MF20x1,5MF20x1,5MF20x1,5MF22x1,5MF22x1,5MF22x1,5MF22x1,5MF24x1,5MF24x1,5MF24x1,5MF24x1,5MF27x1,5MF27x1,5MF27x1,5MF27x1,5MF30x1,5MF30x1,5MF30x1,5MF30x1,5UNc6xUNc6xUNc6xUNc8xUNc8xUNc8xUNc10xUNc10xUNc10xUNc12xUNc12xUNc12xUNc1/4xUNc1/4xUNc1/4xUNc5/16xUNc5/16xUNc5/16xUNc3/8xUNc3/8xUNc3/8xUNc7/16xUNc7/16xUNc7/16xUNc1/2xUNc1/2xUNc1/2xUNc9/16xUNc9/16xUNc9/16xUNc5/8xUNc5/8xUNc5/8xUNc3/4xUNc3/4xUNc3/4xUNc7/8xUNc7/8xUNc7/8xUNc1”xUNc1”xUNc1”xUNF6xUNF6xUNF6xUNF8xUNF8xUNF8xUNF10xUNF10xUNF10xUNF12xUNF12xUNF12xUNF1/4xUNF1/4xUNF1/4xUNF5/16xUNF5/16xUNF5/16xUNF3/8xUNF3/8xUNF3/8xUNF7/16xUNF7/16xUNF7/16xUNF1/2xUNF1/2xUNF1/2xUNF9/16xUNF9/16xUNF9/16xUNF5/8xUNF5/8xUNF5/8xUNF3/4xUNF3/4xUNF3/4xUNF7/8xUNF7/8xUNF7/8xUNF1”xUNF1”xUNF1”x8UN1”1/8x8UN1”1/8x8UN1”1/4x8UN1”1/4x8UN1”3/8x8UN1”3/8x8UN1”1/2x8UN1”1/2x8UN1”3/4x8UN1”3/4x8UN2”x8UN2”x8UN2”1/4x8UN2”1/4x8UN2”1/2x8UN2”1/2x
Teknik Özellikler
| Çap (D) | MF22 |
| Hatve / Adım (P) | 1,5 |
| Toplam Boy (L) | 125 |
| Kesme Boyu (L1) | 18 |
| Sap Çapı (d) | 18 |
| Kare Şaft Genişliği (a) | 14,5 |
| Standart | DIN 374 |
| Malzeme | HSSE |
| Kaplama | - |
| Tolerans | 6H/ISO2 |
| Ağız / Pah Tipi | C/2-3 |
| Uygulama Alanı | 1.1 - 1.2 - 1.3 - 1.4 |
| Marka | Neuwerk |
