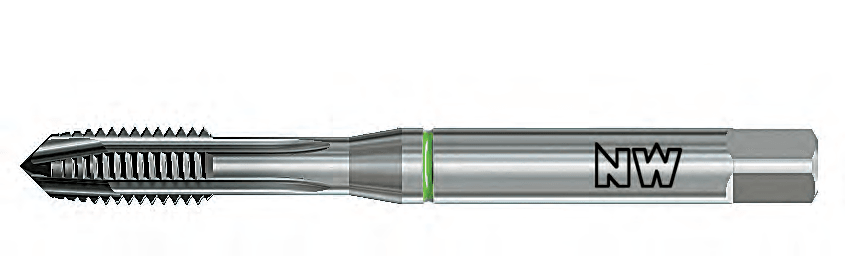

421TW - Makine Kılavuzları - MF14x1,5
Ürün kodu421TWMF14150
Görsel ürün ailesine aittir. Seçili modelin ölçüleri için teknik bilgileri esas alın.
Varyant seçin
M3x0,5421TWM03050M4x0,7421TWM04070M5x0,8421TWM05080M6x1421TWM06100M8x1,25421TWM08125M10x1,5421TWM10150M12x1,75421TWM12175M14x2421TWM14200M16x2421TWM16200MF8x1421TWMF08100MF10x1,25421TWMF10125MF12x1,5421TWMF12150MF14x1,5421TWMF14150MF16x1,5421TWMF16150MF18x1,5421TWMF18150MF20x1,5421TWMF20150MF22x1,5421TWMF22150MF24x1,5421TWMF24150UNc6x421TWUNC6-32UNc8x421TWUNC8-32UNc10x421TWUNC10-24UNc1/4x421TWUNC1/4-20UNc5/16x421TWUNC5/16-18UNc3/8x421TWUNC3/8-16UNc7/16x421TWUNC7/16-14UNc1/2x421TWUNC1/2-13UNc9/16x421TWUNC9/16-12UNc5/8x421TWUNC5/8-11UNc3/4x421TWUNC3/4-10UNc7/8x421TWUNC7/8-9UNc1”x421TWUNC1”-8UNF6x421TWUNF6-40UNF8x421TWUNF8-36UNF10x421TWUNF10-32UNF1/4x421TWUNF1/4-28UNF5/16x421RSTWUNF5/16-24UNF3/8x421RSTWUNF3/8-24UNF7/16x421TWUNF7/16-20UNF1/2x421TWUNF1/2-20UNF9/16x421TWUNF9/16-18UNF5/8x421TWUNF5/8-18UNF3/4x421TWUNF3/4-16UNF7/8x421TWUNF7/8-14UNF1”x421TWUNF1”-12
Fiyat ve stok bilgisi için teklif isteyin.
Teknik bilgiler
- Çap (D)
- MF14
- Hatve / Adım (P)
- 1,5
- Toplam Boy (L)
- 100
- Kesme Boyu (L1)
- 22
- Sap Çapı (d)
- 11
- Kare Şaft Genişliği (a)
- 9
- Kaplama
- TW
- Tolerans
- 6HX
- Ağız / Pah Tipi
- B/4-5
- Uygulama Alanı
- 1.1 - 1.2 - 1.3 - 1.4 - 1.5
- Marka
- Neuwerk
