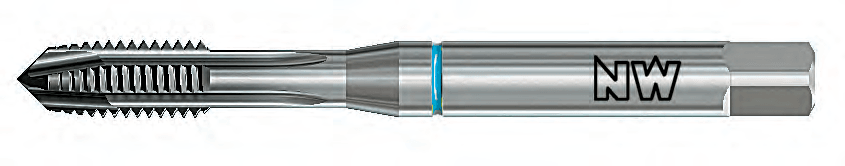

422TLW - Makine Kılavuzları - UNF10x
Ürün kodu422TLWUNF10-32
Görsel ürün ailesine aittir. Seçili modelin ölçüleri için teknik bilgileri esas alın.
Varyant seçin
M3x0,5422TLWM03050M4x0,7422TLWM04070M5x0,8422TLWM05080M6x1422TLWM06100M8x1,25422TLWM08125M10x1,5422TLWM10150M12x1,75422TLWM12175M14x2422TLWM14200M16x2422TLWM16200MF8x1422TLWMF08100MF10x1,25422TLWMF10125MF12x1,5422TLWMF12150MF14x1,5422TLWMF14150MF16x1,5422TLWMF16150MF18x1,5422TLWMF18150MF20x1,5422TLWMF20150MF22x1,5422TLWMF22150MF24x1,5422TLWMF24150UNc6x422TLWUNC6-32UNc8x422TLWUNC8-32UNc10x422TLWUNC10-24UNc1/4x422TLWUNC1/4-20UNc5/16x422TLWUNC5/16-18UNc3/8x422TLWUNC3/8-16UNc7/16x422TLWUNC7/16-14UNc1/2x422TLWUNC1/2-13UNc9/16x422TLWUNC9/16-12UNc5/8x422TLWUNC5/8-11UNc3/4x422TLWUNC3/4-10UNc7/8x422TLWUNC7/8-9UNc1”x422TLWUNC1”-8UNF6x422TLWUNF6-40UNF8x422TLWUNF8-36UNF10x422TLWUNF10-32UNF1/4x422TLWUNF1/4-28UNF5/16x422RSTLWUNF5/16-24UNF3/8x422RSTLWUNF3/8-24UNF7/16x422TLWUNF7/16-20UNF1/2x422TLWUNF1/2-20UNF9/16x422TLWUNF9/16-18UNF5/8x422TLWUNF5/8-18UNF3/4x422TLWUNF3/4-16UNF7/8x422TLWUNF7/8-14UNF1”x422TLWUNF1”-12
Fiyat ve stok bilgisi için teklif isteyin.
Teknik bilgiler
- Çap (D)
- UNF10
- Toplam Boy (L)
- 70
- Kesme Boyu (L1)
- 13
- Sap Çapı (d)
- 6
- Kare Şaft Genişliği (a)
- 4,9
- Standart
- DIN 371/374
- Kaplama
- TLW
- Tolerans
- 2BX
- Ağız / Pah Tipi
- B/4-5
- Uygulama Alanı
- 1.3 - 1.4 - 1.5
- Marka
- Neuwerk
