620TN - Makine Kılavuzları - UNF6x
Ürün kodu620TNUNF6-40

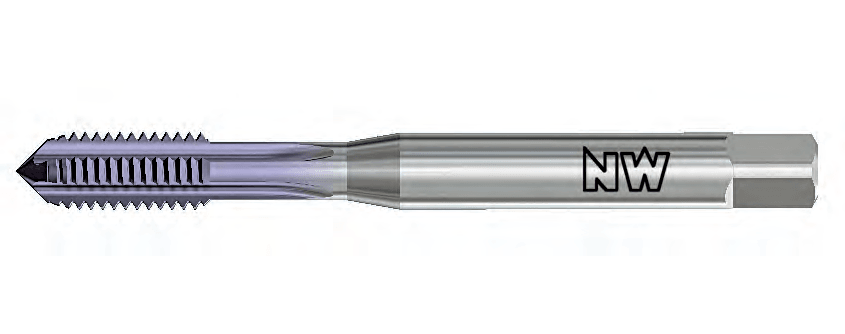

Görsel ürün ailesine aittir. Seçili modelin ölçüleri için teknik bilgileri esas alın.
Varyant seçin
M6x1620TNM06100M6x1620TNKKM06100M8x1,25620TNM08125M8x1,25620TNKKM08125M10x1,5620TNM10150M10x1,5620TNKKM10150M12x1,75620TNM12175M12x1,75620TNKKM12175M14x2620TNM14200M14x2620TNKKM14200M16x2620TNM16200M16x2620TNKKM16200M18x2,5620TNM18250M18x2,5620TNKKM18250M20x2,5620TNM20250M20x2,5620TNKKM20250MF8x1620TNMF08100MF8x1620TNKKMF08100MF10x1620TNMF10100MF10x1620TNKKMF10100MF10x1,25620TNMF10125MF10x1,25620TNKKMF10125MF12x1,25620TNMF12150MF12x1,25620TNKKMF12150MF14x1,5620TNMF14150MF14x1,5620TNKKMF14150MF16x1,5620TNMF16150MF16x1,5620TNKKMF16150MF18x1,5620TNMF18150MF18x1,5620TNKKMF18150MF20x1,5620TNMF20150MF20x1,5620TNKKMF20150MF22x1,5620TNMF22150MF22x1,5620TNKKMF22150MF24x1,5620TNMF24150MF24x1,5620TNKKMF24150MF27x1,5620TNMF27150MF27x1,5620TNKKMF27150UNc6x620TNUNC6-32UNc8x620TNUNC8-32UNc10x620TNUNC10-24UNc12x620TNUNC12-24UNc1/4x620TNUNC1/4-20UNc5/16x620RSTNUNC5/16-18UNc3/8x620RSTNUNC3/8-16UNc7/16x620TNUNC7/16-14UNc1/2x620TNUNC1/2-13UNc9/16x620TNUNC9/16-12UNc5/8x620TNUNC5/8-11UNc3/4x620TNUNC3/4-10UNc7/8x620TNUNC7/8-9UNc1”x620TNUNC1”-8UNF6x620TNUNF6-40UNF8x620TNUNF8-36UNF10x620TNUNF10-32UNF12x620TNUNF12-28UNF1/4x620TNUNF1/4-28UNF5/16x620RSTNUNF5/16-24UNF3/8x620RSTNUNF3/8-24UNF7/16x620TNUNF7/16-20UNF1/2x620TNUNF1/2-20UNF9/16x620TNUNF9/16-18UNF5/8x620TNUNF5/8-18UNF3/4x620TNUNF3/4-16UNF7/8x620TNUNF7/8-14UNF1”x620TNUNF1”-12
Fiyat ve stok bilgisi için teklif isteyin.
Teknik bilgiler
- Çap (D)
- UNF6
- Toplam Boy (L)
- 56
- Kesme Boyu (L1)
- 11
- Sap Çapı (d)
- 4
- Kare Şaft Genişliği (a)
- 3
- Standart
- DIN 371/374
- Kaplama
- TN
- Tolerans
- 2BX
- Ağız / Pah Tipi
- C/2-3
- Uygulama Alanı
- 3.1 - 3.2 - 3.3 - 3.4
- Marka
- Neuwerk
